Zoho Cliq Channel for OpenClaw

Connect your OpenClaw agent to Zoho Cliq — reply to DMs and channel @mentions as a native bot, with streaming previews, cards, buttons, and message actions.

openclaw plugins install clawhub:@sprintcx/openclaw-cliq

Channel plugin · OAuth 2.0 · multi-data-center · MIT · verified live on a real gateway

⚡ Quick start

Get a bot answering DMs in four steps (channel @mention replies add one OAuth step — see Setup guide below):

1. Create a Cliq bot — Zoho Cliq → Bots → Create Bot. Note the Bot Unique Name (botId) and display name.
2. Get OAuth credentials — Zoho API Console (use your data center's domain) → Self Client → note Client ID + Client Secret.
3. Install & configure

   openclaw plugins install clawhub:@sprintcx/openclaw-cliq
   openclaw setup            # pick "Zoho Cliq" — the wizard writes the account config


4. Wire the webhook — paste the Deluge handler into the bot's Message/Mention handlers, pointing at https://<your-gateway>/cliq/webhook.

DM the bot → it answers. To also reply to channel @mentions and stream live edits, add the one-time refresh token in §3c.

Verified live. DMs and channel @mentions both round-trip end to end on a real OpenClaw gateway.

Features

• 💬 Messaging — DMs + channel @mentions via a Deluge webhook, outbound as the bot (DMs via userids, channel posts via channelsbyname). Inbound image / file / voice attachments are downloaded and handed to the agent. stop / /stop / esc interrupts a running turn. Cliq Form submissions (structured input via the bot's Form Handler) are recognized and routed to the agent with their field values surfaced as FormValues / FormName; the agent can also solicit structured input by rendering a form as a native prompt card — a button click re-enters as a structured FormValues entry (parameter capture).
• ✍️ Rich replies — Markdown → Cliq formatting, live-edit streaming previews, interactive buttons & cards, slash-style commands, reply threading. Opt-in v3 Message Cards (apiVersion: { channelCard: "v3" } — DM cards already default to v3 via dmPost) add modern-inline / prompt / poll themes, supporting-content slides (table / list / label / image / text blocks), modern-inline sections (in-card labeled field groups), and a thumbnail header image.
• ⚡ Message actions — Edit / delete / react to sent messages from the agent.
• 🔐 OAuth 2.0 — client_credentials for DMs; a user-context refresh token for channel posts / message edits. Works on any Zoho data center.
• 🛡️ DM security — allowlist / pairing / open / disabled policies with an approval flow.
• 🧩 Per-channel policy — Group admission + per-channel requireMention, tool policy, and per-sender tool overrides.
• 🔁 Reliability — Durable-before-ack ingest, de-dup on redelivery, bot-loop / self-message protection, outbound retry with error classification (parses the v3 {"message":"…"} error envelope).
• 🔒 Hardened webhook — Constant-time secret compare, single-header auth, failed-auth rate limiting.
• 🩺 Operations — openclaw status / channels health probe, openclaw directory lookup, plugin doctor, interactive setup wizard, SecretRef credentials, security audit, session binding, multi-account, lifecycle hooks.

Known limitation: the bot can send reactions, but inbound reaction notifications (being told when a user reacts) are not yet possible — the OpenClaw plugin SDK exposes no inbound non-message event hook for external channel plugins. Tracked upstream: openclaw/openclaw#100447.

Setup guide

Everything that must be configured on the Zoho side so the cliq channel plugin can talk to your OpenClaw gateway.

📍 Pick your Zoho data center first. Zoho stores each account in one region, and the domain differs per region. The URLs below use .com (US) — replace .com with your data center's domain (.eu, .in, .com.au, .jp, zohocloud.ca, .sa, .com.cn). The plugin's OAuth + API calls default to the EU endpoints; if your account is not on EU, also set oauthBase and apiBase in the config (see §4). Not sure which region you're on? Check the domain you log into Zoho at — e.g. cliq.zoho.eu → EU. Full mapping: Data centers.

Prerequisites

• A Zoho account with access to Zoho Cliq and the Zoho API Console.
• A running OpenClaw gateway reachable from the public internet (so Zoho can call the webhook). A reverse proxy, Cloudflare Tunnel, or ngrok all work for development.
• The bot owner must be able to create a bot in Cliq (admin / developer permission).

1. Create a Zoho Cliq Bot

Open the bot builder: click your profile picture (top-right in Zoho Cliq) → under My Cliq choose Bots & Tools.

1. In Bots & Tools, open the Bots section.
2. Click Create Bot.
3. Fill in:
   • Bot Name (display name, e.g. OpenClaw Agent) — this is what users see.
   • Bot Unique Name (e.g. openclaw_agent) — this is the botId you will put in the plugin config. Lowercase, underscores, no spaces.
   • Bot Type: choose Custom Bot (a Deluge-backed bot whose handlers forward to the webhook). A pure "Webhook Bot" is not required — we use a Custom Bot with a Deluge handler that invokeUrls our endpoint.
4. Set the bot's Functional Handlers:
   • Mention Handler — fired when the bot is @mentioned in a channel.
   • Message Handler — fired when a user DMs the bot directly.
5. Publish / Activate the bot (it must be active to receive events).
6. Invite the bot into the channel(s) where it should respond to mentions. In a Cliq channel: ⋯ → Bots → add your bot. The bot can always receive DMs without an explicit invite.

The Bot Unique Name you pick here is the botId config field. The display name is botName (used for @mention stripping in the agent-visible text).

2. Configure the Webhook

The plugin registers a single HTTP route at POST /cliq/webhook on your OpenClaw gateway. Zoho Cliq's Deluge bot handler must POST every mention / message event to that URL.

1. Pick a strong random secret (e.g. openssl rand -hex 32) — this becomes your webhookSecret.

2. Note the public URL of your OpenClaw gateway, e.g. https://openclaw.example.com. The full webhook URL is:

   https://<gateway-host>/cliq/webhook


   The route is registered with auth: "plugin", so no additional gateway-level bearer token is required; the webhookSecret is verified by the plugin itself via the x-cliq-webhook-secret header.

3. Make sure the gateway host is reachable from the public internet (Zoho's servers POST to it). For local development use a Cloudflare Tunnel / ngrok / reverse proxy.

4. In the Cliq Bot's Deluge editor (see step 5 below), set the webhook URL and the secret header on every invokeUrl call.

3. OAuth / API Credentials

The plugin uses two OAuth grant types, because the client_credentials grant CANNOT obtain a usable token for the ZohoCliq.Channels.UPDATE or ZohoCliq.Messages.UPDATE scopes — Zoho issues a token whose response reports the scope, but the API rejects it on use with {"code":"oauthtoken_scope_invalid"}. So:

• Bot DMs (/bots/{botId}/message, scope ZohoCliq.Webhooks.CREATE) → client_credentials (the plugin fetches a fresh access token automatically when the cached one expires; no refresh token, no user interaction).
• Channel posts (/channelsbyname/{unique_name}/message, scope ZohoCliq.Channels.UPDATE) and message edits (/chats/{chatId}/messages/{messageId}, scope ZohoCliq.Messages.UPDATE) → a user-context refresh token obtained once via the self-client authorization_code flow. The plugin mints short-lived access tokens from it via grant_type=refresh_token and caches them until they expire (~1h). Without a refresh token, channel replies and live-edit streaming previews will fail with oauthtoken_scope_invalid — DM-only setups keep working.

3a. Create the OAuth client

1. Open the Zoho API Console — use your data center's domain (Data centers). Choose Self Client if you do not already have one for Cliq.

2. Create a Server-based Application (or Self Client) and note:

   • Client ID
   • Client Secret

3. Your data center's OAuth token endpoint (example uses US .com):

   https://accounts.zoho.com/oauth/v2/token


   The plugin defaults to the EU endpoint (https://accounts.zoho.eu). If your account is on another data center, set oauthBase (and apiBase) in the config (§4) to match — see Data centers.

4. Copy Client ID and Client Secret — they go into clientId / clientSecret in the plugin config below.

3b. Consent the scopes

When registering / re-consenting the self-client, request all ten scopes so both the client_credentials (DM) and refresh-token (channel/edit/delete/card/media) paths work:

Each scope's grant is shown in parentheses — client_credentials is fetched automatically; refresh token requires the one-time §3c token.

• ZohoCliq.Webhooks.CREATE (client_credentials) — Post bot DMs (the /bots/{botId}/message send path).
• ZohoCliq.Channels.UPDATE (refresh token) — Post bot messages to channels (the /channelsbyname/{unique_name}/message send path).
• ZohoCliq.Channels.CREATE (refresh token) — Post a v3 Message Card to a channel (only when the channelCard family resolves to v3 — the v2 channel card path reuses Channels.UPDATE; opt-in, see §4).
• ZohoCliq.Channels.READ (client_credentials) — Read channel / chat metadata.
• ZohoCliq.Users.READ (client_credentials) — Resolve sender user info.
• ZohoCliq.Messages.UPDATE (refresh token) — Edit a sent message in place (live-edit streaming previews).
• ZohoCliq.Messages.READ (refresh token) — Read recent chat messages to resolve an inbound file attachment's file id (a Cliq bot Message handler delivers attachments as bare file-name strings — the plugin fetches the file message via GET /api/v2/chats/{chatId}/messages to recover the downloadable id). Skip it for a text-only bot and inbound images degrade to name-only (no bytes reach the agent); the quote/reply parent-text fetch also uses this scope.
• ZohoCliq.Messages.DELETE (refresh token) — Delete a sent message via the v3 bulk-delete endpoint (only when the delete family resolves to v3 — the v2 single-message delete reuses Messages.UPDATE; opt-in, see §4).
• ZohoCliq.messageactions.CREATE (refresh token) — Add / remove message reactions (the message(action=react) tool).
• ZohoCliq.Attachments.READ (refresh token) — Download inbound file / image / voice attachments (GET /api/v2/files/{id}) so they reach the agent.

Image analysis requires a vision-capable model. Plugin channels (like Cliq) route inbound images through the runtime's media-understanding describe pipeline, which needs a vision-capable model to produce a text description. If your primary model is text-only (e.g. mimo-v2.5-pro), configure either (a) a vision-capable model as your primary, (b) an explicit tools.media.image provider, or (c) a vision-capable fallback model the runtime can auto-discover. Without this, the agent receives the image file path but cannot analyze its contents. The turn degrades gracefully (no orphaned placeholder) — but the image content is not described to the agent.

If you previously consented with only the original three scopes, you must re-consent (generate a fresh self-client token) with ZohoCliq.Channels.UPDATE and ZohoCliq.Messages.UPDATE added — channel replies will be rejected with invalid_scope / 401 until you do. ZohoCliq.Messages.DELETE and ZohoCliq.Channels.CREATE are only needed when you opt the corresponding family into v3 (delete / channelCard — see §4); the v2 paths reuse Messages.UPDATE / Channels.UPDATE respectively, so if you keep those families on the "v2" default you can skip them. The v3 bot-DM endpoint (the dmPost default) uses the same ZohoCliq.Webhooks.CREATE scope as v2 DMs (client_credentials, no extra scope) — though some orgs may additionally require ZohoCliq.BotMessages.CREATE; if yours does, fall back with apiVersion: { dmPost: "v2" }. Reactions (ZohoCliq.messageactions.CREATE) are optional — skip the scope if you don't need the react action, and the plugin will simply not advertise reaction support. ZohoCliq.Messages.READ is only needed for inbound image / file attachments (resolving a bot-handler file name to a downloadable id) and the quote/reply parent-text fetch — skip it for a text-only bot and those features degrade gracefully. Likewise ZohoCliq.Attachments.READ is only needed for inbound media (downloading the resolved images / files / voice a user sends) — skip it for a text-only bot and the plugin degrades to "no media" for those messages.

3c. Obtain the user-context refresh token (required for channel posts + edits)

Channel posts need a user-context token, which client_credentials cannot provide (Zoho issues a client_credentials token that claims the ZohoCliq.Channels.UPDATE scope, but the channel API rejects it with oauthtoken_scope_invalid). You get a user-context token from a refresh token, obtained once via the Self Client's authorization-code flow. This is a two-step process — a short-lived code that you exchange for a permanent refresh token.

The default already skips this for bot DM posts. The dmPost family defaults to v3 (see §4): bot DM posts route through POST /api/v3/bots/{botId}/messages with the ZohoCliq.Webhooks.CREATE scope obtainable via client_credentials, so a refresh token is not required for DMs. The v3 DM endpoint posts as the bot (sender identity preserved — the bot unique name is in the URL path) and sends the recipient key as userids + sync_message: true, so the response carries the sent message_id + chat_id (under message_details.<userId>) — what the thinking placeholder and DM live-edit-in-place need to edit the reply in place. Some orgs may additionally require ZohoCliq.BotMessages.CREATE for the v3 bot endpoint; if yours rejects the v3 DM post, restore the v2 path with apiVersion: { dmPost: "v2" }.

Channel text posts still need the refresh token by default (channelPost defaults to v2 → Channels.UPDATE). Opting apiVersion: { channelPost: "v3" } routes channel text posts through POST /api/v3/channelsbyname/{name}/messages (also Webhooks.CREATE, so no refresh token) — but v3 channel posts return no message id, so live-edit for channel posts degrades to block-streaming (no win over v2). The message delete family stays v2 by default (Messages.UPDATE); opt { delete: "v3" } for the v3 bulk-delete endpoint DELETE /api/v3/chats/{chatId}/messagess?message_ids=<id> — that scope (Messages.DELETE) still needs a user-context refresh token, so the refresh token is still required for deletes even in v3. Channel card/button posts (in channels), media posts, and message edits still require the refresh token (channel card posts route through the v3 Message Card endpoint POST /api/v3/channels/{name}/message with the ZohoCliq.Channels.CREATE scope — a user-context scope, same constraint as Channels.UPDATE; media posts stay on v2 indefinitely — v3 has no byte-upload surface, only a public-HTTPS-image Message-Card slide that posts as the user, not the bot; message edits stay on v2 indefinitely — v3 Messages has no single-message edit endpoint). DM card/button posts in v3 route through the v3 "Send a bot message" endpoint POST /api/v3/bots/{botId}/messages with a top-level card field — the same Webhooks.CREATE scope as DM text posts (client_credentials, no refresh token needed), posting as the bot and addressing the recipient via userids (no chat-id resolution needed). If you only need DM text + DM cards, the default already skips this step entirely. Skip Messages.DELETE from the scope if you don't use deletes; likewise skip Channels.CREATE if you don't use v3 channel cards. Verify your Zoho org accepts the v3 endpoints before relying on it.

Why only once: only the code is short-lived (10 minutes, single-use). The refresh token you get from it does not expire — it survives gateway restarts and any amount of downtime. You do this once per Cliq org and never again (unless you revoke it).

Step 1 — generate the code (valid 10 minutes):

1. In the Zoho API Console (your data center) → your Self Client → tab Generate Code.
2. Scope (the Self Client field is comma-separated, no spaces):

   ZohoCliq.Webhooks.CREATE,ZohoCliq.Channels.UPDATE,ZohoCliq.Channels.CREATE,ZohoCliq.Messages.UPDATE,ZohoCliq.Messages.READ,ZohoCliq.Messages.DELETE,ZohoCliq.Channels.READ,ZohoCliq.Users.READ,ZohoCliq.messageactions.CREATE,ZohoCliq.Attachments.READ


3. Time Duration: 10 minutes. Scope Description: anything (e.g. openclaw). Pick your portal/org if prompted.
4. Click Create and copy the code — it looks like 1000.<hex>.<hex>.

Step 2 — exchange the code for a refresh token (do this within the 10 minutes):

The Self Client console gives you a code, not the token. Exchange it against your data center's token endpoint (the example uses US .com — see Data centers; no redirect_uri is needed for the self-client flow):

curl -X POST "https://accounts.zoho.com/oauth/v2/token" \
  -d "grant_type=authorization_code" \
  -d "client_id=<clientId>" \
  -d "client_secret=<clientSecret>" \
  -d "code=<code from step 1>"

The response is JSON:

{
  "access_token": "1000....",     // short-lived (~1h) — ignore it
  "refresh_token": "1000....",    // PERMANENT — this is the one you keep
  "scope": "ZohoCliq.Webhooks.CREATE ZohoCliq.Channels.UPDATE ...",
  "expires_in": 3600
}

Copy the refresh_token value.

Step 3 — store it: put the refresh_token in the plugin config as refreshToken (see §4). From then on the plugin mints its own short-lived access tokens from it automatically (grant_type=refresh_token), forever.

Troubleshooting:

• invalid_code on exchange → the code expired (>10 min) or was already used once. Generate a fresh one.
• Channel replies still oauthtoken_scope_invalid → the refreshToken is missing from config, or was minted without ZohoCliq.Channels.UPDATE. Re-run 3c with the full scope list.
• channel_not_exists on a real channel → the bot is not a participant of that channel (invite it: channel ⋯ → Bots), or you used the channel's display name instead of its unique name (the technical name — e.g. a channel shown as "Finance" may have the unique name invest).

If you skip 3c entirely, the plugin still works for bot DMs (the client_credentials path); only channel @mention replies and live-edit message edits require the refresh token.

4. OpenClaw Configuration

Add the cliq channel to your openclaw.json (or via openclaw setup / the setup wizard's applyAccountConfig step). The required fields are clientId, clientSecret, and botId; botName, webhookSecret, and allowFrom are recommended.

{
  "channels": {
    "cliq": {
      "accounts": {
        "default": {
          "clientId": "<OAuth client id from step 3a>",
          "clientSecret": "<OAuth client secret from step 3a>",
          "botId": "openclaw_agent",      // Bot Unique Name from step 1
          "botName": "OpenClaw Agent",    // Bot display name from step 1
          "webhookSecret": "<secret from step 2>",
          "refreshToken": "<refresh token from step 3c — required for channel posts / edits>",
          "allowFrom": ["<zoho user id of each allowed DM sender>"],
          "dmPolicy": "allowlist",        // "open" | "allowlist" | "pairing" | "disabled"
          // Data center: omit both for EU (default). For any other region set both
          // to your data center's endpoints — see "Data centers" below.
          "oauthBase": "https://accounts.zoho.com",
          "apiBase": "https://cliq.zoho.com"
        }
      }
    }
  }
}

Every field except the required ones has a sensible default; groups / thinking / pairing are nested objects (see their descriptions).

• clientId (required) — OAuth client id from the Zoho API Console.

• clientSecret (required) — OAuth client secret (sensitive).

• botId (required) — Bot Unique Name (the path segment in the bot message API).

• botName (recommended) — Bot display name. Used to strip the @botName mention from the text the agent sees.

• webhookSecret (recommended) — Shared secret the Deluge handler sends in the x-cliq-webhook-secret header. If unset, the webhook accepts all requests (not recommended).

• refreshToken (recommended) — User-context OAuth refresh token (sensitive). Obtained once via the self-client authorization_code flow (§3c). Required for channel @mention replies and live-edit message edits — without it, those paths fail with oauthtoken_scope_invalid (the client_credentials grant cannot obtain a usable token for ZohoCliq.Channels.UPDATE / ZohoCliq.Messages.UPDATE). DM-only setups can leave it unset.

• ackPolicy (optional) — When the webhook acknowledges Cliq relative to the inbound dispatch. "after_dispatch" (default) awaits the full dispatch before sending HTTP 200 — a crash mid-dispatch means Cliq never sees the 200 and redelivers (no lost message). "immediate" fires-and-forgets (faster, but a crash between ack and dispatch loses the message). Deluge timeout gotcha: Zoho's invokeUrl in the bot Message handler has a ~40 s hard timeout. With the default ackPolicy: "after_dispatch" the webhook holds the connection until the whole agent turn finishes, so a slow turn (image analysis, cold model) trips Deluge's "The task has been terminated since the API call is taking too long to respond" even though the reply is delivered out-of-band. Operators with slow turns should set ackPolicy: "immediate" (fire-and-forget ack; documented lost-message-on-crash trade-off). Pairs naturally with thinking.mode: "placeholder" (the placeholder posts immediately while the agent works).

• allowFrom (optional) — Array of Zoho Cliq user ids allowed to DM the bot (only effective when dmPolicy is allowlist or pairing).

• dmPolicy (optional) — DM admission policy. Default is allowlist (deny by default). pairing starts the OpenClaw pairing approval flow for unknown senders — by default the sender gets a reply with a pairing code and the bot owner runs openclaw pairing approve cliq <code> on the CLI; set pairing.notifyOwnerTarget (see the pairing row below) to instead post an Approve/Deny card to the owner so approval happens inline in Cliq. Accepted values: open, allowlist, pairing, disabled (schema-validated — unknown field names like dmSecurity are rejected).

• groupPolicy (optional) — Group/channel admission policy. open lets the bot respond in any channel it's @mentioned in; allowlist (the effective default once a groups map is present) restricts it to channels listed under groups; disabled ignores all group messages.

• groups (optional) — Per-channel config keyed by the Cliq channel unique name. Each entry supports requireMention (boolean — false lets the bot respond in that channel without an explicit @mention), ingest (boolean), tools ({ allow, alsoAllow, deny } tool policy for that channel), and toolsBySender (per-sender tool policy overrides keyed by channel:cliq:<senderId>, id:<senderId>, name:<display>, e164:<phone>, username:<handle>, or *). A * entry applies to any channel not listed explicitly.

• thinking (optional) — Instant acknowledgement / "thinking" placeholder. New installs default to an animated placeholder (thinking.mode: "placeholder", thinking.animate: "dots" — cycles 💭 . → 💭 .. → 💭 ... while the agent works). Set thinking.mode: "off" or thinking.animate: "off" to disable. thinking.mode selects the acknowledgement style: "placeholder" (default — post a lightweight text placeholder, default 💭 …, configurable via thinking.text, then edit it in place into the final reply — exactly one message, no duplicate), "card" (post a v3 Message Card status indicator — a modern-inline card — instead of plain text, and transition its title through explicit phases as the turn runs: it is first posted with the "thinking" phase title thinking.thinkingText, default 💭 thinking…, then edited in place to the "generating" phase title thinking.text, default Generating…, right before the agent turn dispatches, and finally edited into the reply text when the reply arrives), or "off" (no extra API call per turn). thinking.animate cycles the placeholder through text frames on an interval while the agent turn runs: "dots" (default — 💭 . → 💭 .. → 💭 ...), "spinner" (braille-spinner frames), "custom" (user-provided thinking.animateFrames), or "off" (static placeholder). On apiVersion: "v3" the card is a real card posted via the v3 Message Card endpoints (DM via POST /api/v3/bots/{botId}/messages with scope Webhooks.CREATE, channel via POST /api/v3/channels/{name}/message with scope Channels.CREATE); on v2 it degrades to the plain-text placeholder since v2 has no buttonless card. This is the Cliq-appropriate substitute for a typing indicator (Cliq exposes no bot typing API). Any acknowledgement mode is a no-op when streaming.preview is "on" (the live-edit path already shows progress) or no refreshToken is configured (editing the placeholder into the reply needs the user-context token). thinking.failureText (optional) overrides what the placeholder/card becomes when the agent turn ends with no reply (the turn threw, or the model produced no output): when set, the placeholder is edited into that text (e.g. ⚠️ No reply generated.); when unset, the untouched placeholder is deleted so no stray indicator lingers. Confirmation gate (card-mode only): set thinking.confirm to gate sensitive inbound actions behind an explicit Confirm / Cancel button card instead of dispatching immediately. "off" (default) disables gating; "sensitive" gates only when the cleaned message matches a thinking.confirmKeywords entry (case-insensitive word-boundary match; defaults to a conservative destructive-verb list — delete, drop, reset, wipe, purge, …); "always" gates every turn (apart from abort intents and Confirm-button re-dispatches). When gated, a prompt-theme Message Card titled thinking.confirmText (default ⚠️ Confirm action?) with thinking.confirmLabel / thinking.cancelLabel buttons (defaults Confirm / Cancel) is posted and the agent turn is held until the user taps a button. Confirm re-posts the original message (prefixed with a sentinel) so the next webhook call dispatches the agent with the gate skipped (no re-prompt loop); Cancel posts a sentinel that short-circuits the turn with thinking.cancelledText (default 🚫 Cancelled.) and no agent dispatch. The button clicks arrive as ordinary inbound messages via the bot's Message handler (invoke.bot) — no Cliq Context handler is required. Messages longer than 1500 chars bypass the gate (cannot be safely encoded in the confirm button payload). The gate is a UX guardrail, not a security boundary — the agent's own tool / permission policy still applies to the confirmed action. No new OAuth scope (reuses the card-path scopes). Animated placeholder (issue #86): set thinking.animate to optionally cycle the placeholder through text frames on an interval while the turn runs (Cliq has no native typing indicator — this simulates one via periodic edits), then edit it into the final reply when the reply arrives. "off" (default) is a static placeholder; "dots" cycles 💭 . → 💭 .. → 💭 ...; "spinner" cycles braille-spinner frames prefixed with a fixed thinking… label; "custom" cycles thinking.animateFrames (a string array — needs ≥2 non-empty entries or it degrades to the static placeholder). The interval is thinking.animateIntervalMs (default 1200 ms, hard-floored to 800 ms to protect the Cliq edit rate limit) and the total animation duration is capped (default 60 s — past the cap the animation stops and holds the last frame so a long turn does not hammer the edit endpoint). The animation reuses the existing editMessage path (Messages.UPDATE, same refreshToken precondition as the placeholder itself); a failed frame edit stops the animation but never breaks the turn (the reply is still delivered). Only one animation runs per in-flight message — it is stopped the moment the reply (or failure text) arrives so a late frame edit can never clobber the reply. No new OAuth scope.

• welcome (optional) — Welcome message on subscribe. When the Cliq bot Welcome Handler forwards a subscribe event to the webhook (see §5a) and welcome.enabled === true, the bot posts a configurable greeting DM to the subscriber. welcome.text is used for first-time subscribers and welcome.textRejoin for users who unsubscribed and came back; both default to a friendly greeting and support {{firstName}} / {{lastName}} / {{name}} / {{id}} / {{email}} placeholders resolved from the forwarded user object. The DM admission policy (dmPolicy / allowFrom) is honored — a denied sender is never greeted, and under the pairing policy an un-paired subscriber is skipped (the pairing flow owns their first contact). Default enabled: false (opt-in, so no setup gets a surprise greeting). A redelivered subscribe event is deduped so the user is never greeted twice.

• pairing (optional) — Form-driven pairing approval (only effective when dmPolicy is pairing). By default an unknown sender's pairing code must be approved on the CLI (openclaw pairing approve cliq <code>). Set pairing.notifyOwnerTarget to a Cliq route target — cliq:user:<zohoUserId> / user:<zohoUserId> / cliq:channel:<uniqueName> / channel:<uniqueName> (a bare string is treated as a DM user id) — and the pairing flow additionally posts an approval prompt card there (a prompt-theme Message Card with Approve/Deny invoke.bot buttons) carrying the sender id + pairing code. The owner taps Approve to admit the sender (the plugin calls the SDK's approveChannelPairingCode, writing the sender to the channel allowFrom store, and DMs the sender that they were approved) or Deny to reply deniedOwnerText (the pending request is left in place; the sender is re-challenged idempotently if they message again). The CLI step keeps working alongside the card. Requires botId (the v3 invoke.bot button renderer drops buttons without one); when absent or notifyOwnerTarget is unset, the card is skipped and only the CLI path is used. The button click arrives as an ordinary inbound message and is short-circuited before the mention / admission gates (so the owner need not be on the allowlist to approve). Optional overrides: approveLabel / denyLabel (button labels, default Approve / Deny), approvalTitle (card title, default 🔐 Pairing request), approvedOwnerText (owner reply on approve, default ✅ Approved.), deniedOwnerText (owner reply on deny, default 🚫 Denied.). No new OAuth scope — the approval card reuses the same card-path scopes (Webhooks.CREATE for DM cards via client_credentials; Channels.UPDATE on v2 / Channels.CREATE on v3 for channel cards) the existing message(action=send, buttons=…) path uses.

• oauthBase (optional) — OAuth base URL for your Zoho data center. Defaults to the EU endpoint https://accounts.zoho.eu. Set it (together with apiBase) when your account is not on EU — see Data centers.

• apiBase (optional) — Cliq REST API base URL for your Zoho data center. Defaults to the EU endpoint https://cliq.zoho.eu. Set it (together with oauthBase) when your account is not on EU.

• apiVersion (optional) — REST API generation for the channel text post, bot DM post, message delete, and channel card/button post families. Accepts EITHER a string global override OR a per-family object:

  • a string "v2" forces ALL migratable families to the verified-live v2 endpoints; "v3" forces all to v3.
  • an object { dmPost?, channelPost?, channelCard?, delete? } overrides per-family; any family left unset falls back to the built-in default.

  Built-in per-family defaults (the sole family where v3 is strictly better flips to v3; the rest stay v2). Omitting apiVersion entirely yields these defaults — you no longer need to set apiVersion: "v3" for the DM placeholder / live-edit to work (a previous manifest default: "v2" bug silently forced all families to v2; fixed in issue #86).

  • dmPost → "v3" (the win). The v3 "Send a bot message" endpoint POST /api/v3/bots/{botId}/messages (scope ZohoCliq.Webhooks.CREATE via client_credentials — no refresh token needed, posts as the bot) sends the recipient key as userids (v2-style, NO underscore — a user_ids key is rejected with extra_key_found) and sync_message: true, so the response carries the sent message_id + chat_id under message_details.<userId> (URL-encoded — decoded once and the v2 edit URL re-encodes exactly once). That id is what the thinking.mode: "placeholder" acknowledgement and DM live-edit-in-place need to edit the reply in place; the v2 DM endpoint returns no message id, so on v2 DMs those features leave an orphaned 💭 …. Some orgs may additionally require the ZohoCliq.BotMessages.CREATE scope for the v3 bot endpoint — if your org rejects the v3 DM post, restore the v2 path with apiVersion: { dmPost: "v2" } (or the string "v2").
  • channelPost → "v2". v3 (POST /api/v3/channelsbyname/{name}/messages, Webhooks.CREATE) posts as the bot but returns no message id (live-edit for channel posts degrades to block-streaming — no win over v2). Flip to "v3" only after verifying the win live.
  • channelCard → "v2". The v3 Message Card channel endpoint POST /api/v3/channels/{name}/message (note: channels, not channelsbyname, singular message; scope ZohoCliq.Channels.CREATE, refresh-token grant) has no bot_unique_name query param, so a v3 channel card posts as the authenticated user (not the bot) — a sender-identity regression. v2 channel cards (channelsbyname/{name}/message?bot_unique_name=, Channels.UPDATE) post as the bot. The v3 path renders a modern-inline Message Card body whose theme is selected by the card sender (modern-inline for agent-emitted presentations and the message(action=send, buttons=[...]) tool; the message(action=send, slides=[...]) tool attaches structured table / list / label / images / text supporting-content blocks via the theme-independent top-level slides array; the message(action=send, thumbnail="https://…", sections=[{ title?, fields: [{ title, value }] }]) tool attaches a modern-inline-only header thumbnail image (HTTPS URL) and in-card labeled field sections (both ignored for prompt / poll); prompt for the slash-command quick-reply buttons emitted by the /models and /model menus — a focused quick-reply card with a title + 1–5 action buttons, no sections; poll for voting cards emitted by the message(action=send, theme="poll", pollOptions=[...]) tool — a title + 2–10 plain-text options, no buttons; Cliq counts votes natively, so a poll does NOT post anything back to the bot). DM card/button posts in v3 route through the same POST /api/v3/bots/{botId}/messages endpoint as v3 DM text posts, with a top-level card field — same Webhooks.CREATE scope (client_credentials, no refresh token), posting as the bot and addressing the recipient via userids; the poll theme works for DM cards too.
  • delete → "v2". The v3 bulk-delete endpoint DELETE /api/v3/chats/{chatId}/messagess?message_ids=<id> (a 1-element delete-multiple call; scope ZohoCliq.Messages.DELETE, refresh-token grant) offers no functional win over the v2 single-message delete (Messages.UPDATE, refresh-token grant). The v3 delete response is a per-message message.delete_result list parsed into a boolean.

  Locked families (message edit, reactions, media posts, directory listing, file download, channel-chat-id resolution, message list) stay on /api/v2/... regardless of apiVersion — v3 has no endpoint for them (confirmed against the v3 REST docs). A v3-posted DM is edited via the v2 edit endpoint (PUT /api/v2/chats/{chatId}/messages/{messageId}, Messages.UPDATE) — that hybrid is intended. Per-account overrides supported (one account can pilot a different family mix).ay on v2 regardless — v3 Messages has no single-message edit or get endpoint (only delete-multiple, post, forward, search), so edit/list stay v2 indefinitely. v3 channel posts return no message id (live-edit for channel posts degrades to block-streaming); v3 DMs with sync_message: true DO return the message id. Per-account overrides supported (one account can pilot v3 while others stay on v2).

Group/channel identity: the inbound path sets the OpenClaw From context field to cliq:group:<channelUniqueName> for group messages (and fills GroupChannel/GroupSubject with the display name as a fallback), so the groups adapter resolves per-channel requireMention and tool policy by channel unique name. Keys are matched case-insensitively.

Gateway reachability: the host running the OpenClaw gateway must be reachable from the public internet at https://<gateway-host>/cliq/webhook. If you run the gateway behind a reverse proxy / Cloudflare Tunnel, make sure TLS termination and the Host header are preserved.

5. Deluge Webhook Handler

The Cliq bot must forward every mention / message event to the OpenClaw webhook. Paste this Deluge script into the bot's Mention Handler and Message Handler functions in the Cliq Bot editor.

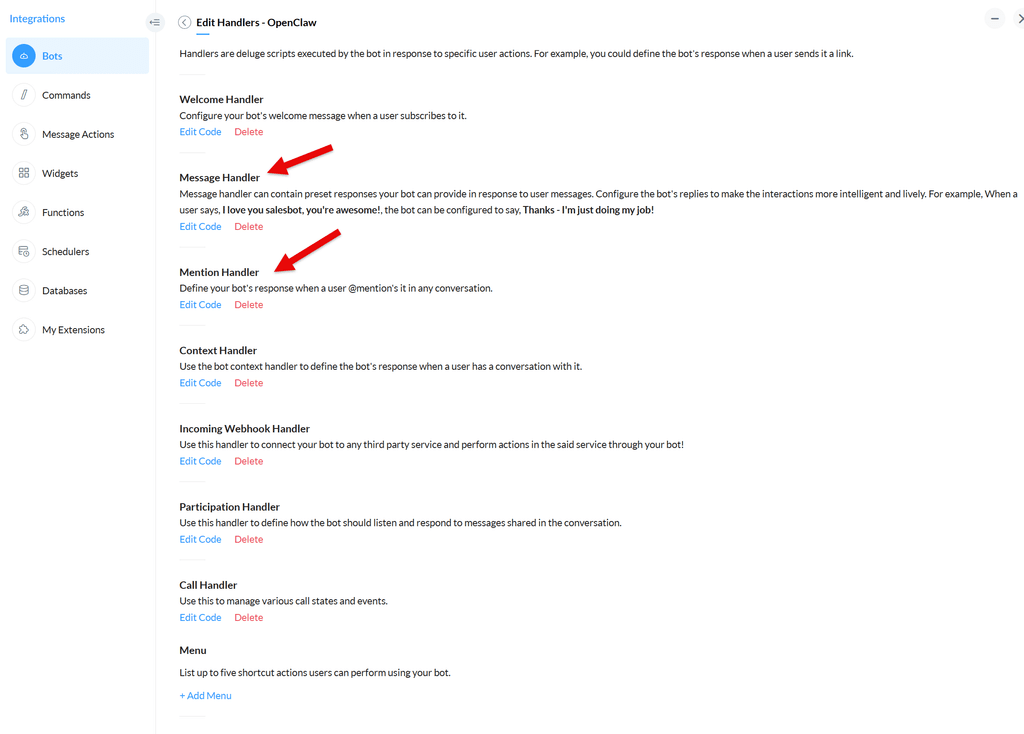

Where to find them: in the Cliq Bot editor open Edit Handlers, then click Edit Code on Message Handler (DMs) and Mention Handler (channel @mentions) — the two arrowed below.

// === Configuration (set these once) ===
// Public URL of your gateway's /cliq/webhook route. If you expose the gateway
// port directly (no reverse proxy / TLS) this is http://<host>:18789/cliq/webhook.
webhookUrl    = "https://<gateway-host>/cliq/webhook";
webhookSecret = "<the same secret you set as webhookSecret in openclaw.json>";

// Cliq provides `message`, `user`, and `chat` in the Message/Mention handler
// scope. The plugin's parser accepts these Cliq objects as-is (it tolerates the
// different chat/channel key variants), so just forward them directly.
// Forward `attachments` too (issue #84): a Cliq bot Message handler receives
// the file names a user attached as a separate `attachments` argument (bare
// file-name strings — no id / MIME); without forwarding them, a caption-less
// image is rejected as `invalid payload` and an image with a caption dispatches
// but the file never reaches the agent. The plugin resolves the file id from
// the chat-messages list when a `refreshToken` is configured (§3c). The
// argument is absent for text-only messages (Deluge passes null), so guard it.
payload = Map();
payload.put("handler", "message");   // <-- use "mention" in the Mention Handler
payload.put("message", message);
payload.put("user", user);
payload.put("chat", chat);
if (attachments != null) {
    payload.put("attachments", attachments);
}

// Auth + content type. The secret header is REQUIRED when webhookSecret is set
// in openclaw.json; Content-Type MUST be application/json.
headers = Map();
headers.put("Content-Type", "application/json");
headers.put("x-cliq-webhook-secret", webhookSecret);

// POST to OpenClaw as raw JSON. Use `body:` (NOT `parameters:`) — see note below.
invoke_response = invokeUrl
[
    url    : webhookUrl
    type   : POST
    body   : payload.toString()
    headers: headers
];

// The reply is delivered by the OpenClaw gateway via the Cliq bot API, so the
// handler itself returns an empty response.
response = Map();
return response;

This is the same script for both handlers — the only difference is the handler value: "message" in the Message Handler (DMs) and "mention" in the Mention Handler (channel/group @mentions). Group vs DM is detected automatically from the forwarded chat object, so no extra mapping is needed.

Do not use parameters: payload.toString(). In Deluge, invokeUrl's parameters: key serializes the value as form-urlencoded data (handler=mention&message=...), which is not the JSON body this plugin expects — the gateway returns 400 Unexpected token 'h', "handler=me"... is not valid JSON. Always use body: together with the Content-Type: application/json header shown above.

5a. Welcome Handler (optional)

The Cliq bot Welcome Handler fires when a user subscribes (or re-subscribes) to the bot. To greet new subscribers from OpenClaw config rather than hard-coding the message in Deluge, paste this script into the bot's Welcome Handler function (in the Cliq Bot editor → Edit Handlers → Edit Code on Welcome Handler). It forwards the subscribe event to the same /cliq/webhook endpoint the Message/Mention handlers use, with handler: "welcome" and Cliq's newuser boolean:

// === Configuration (set these once — same values as §5) ===
webhookUrl    = "https://<gateway-host>/cliq/webhook";
webhookSecret = "<the same secret you set as webhookSecret in openclaw.json>";

payload = Map();
payload.put("handler", "welcome");
payload.put("user", user);
payload.put("newuser", newuser);

headers = Map();
headers.put("Content-Type", "application/json");
headers.put("x-cliq-webhook-secret", webhookSecret);

invokeUrl
[
    url    : webhookUrl
    type   : POST
    body   : payload.toString()
    headers: headers
];

// The greeting is delivered by the OpenClaw gateway via the Cliq bot API,
// so the handler itself returns an empty response.
response = Map();
return response;

When welcome.enabled === true in the channel config, the gateway posts the configured greeting DM to the subscriber (see the welcome row in §4). The event is always acknowledged so Cliq does not redeliver it; a redelivery is deduped by subscriber id so the user is never greeted twice. The dmPolicy / allowFrom gate is honored — a denied sender is never greeted. Without this handler, or with welcome.enabled === false (the default), subscribe events are simply not consumed by the plugin.

5b. Form Handler (optional — structured input)

Zoho Cliq's platform Forms let you define a structured form (text / number / dropdown / date / … fields) that a user fills out from the bot's command surface. When a user submits a form, the bot's Form Handler Deluge script fires and can forward the submitted values to the OpenClaw webhook so the agent receives them as structured input rather than free text — useful for approval / collection flows (pairing approval, parameter capture) instead of asking the user to type free-text answers.

Paste this script into the bot's Form Handler function (in the Cliq Bot editor → Edit Handlers → Edit Code on Form Handler) — it forwards to the same /cliq/webhook endpoint the other handlers use:

// === Configuration (set these once — same values as §5) ===
webhookUrl    = "https://<gateway-host>/cliq/webhook";
webhookSecret = "<the same secret you set as webhookSecret in openclaw.json>";

// Cliq passes the submitted values to the Form Handler scope as the `form`
// object's fields (each named after your form field). Read them out and
// forward them as a `values` map the plugin can parse.
payload = Map();
payload.put("handler", "form");
payload.put("form", { "name": "approval_request" });   // your form's name
payload.put("user", user);
payload.put("chat", chat);

// Build the submitted-values map. Replace the keys with your own form's
// field names; Cliq passes each field value as a Deluge variable named after
// the field. Example fields: approver, priority, reason.
values = Map();
values.put("approver", approver);
values.put("priority", priority);
values.put("reason", reason);
payload.put("values", values);

headers = Map();
headers.put("Content-Type", "application/json");
headers.put("x-cliq-webhook-secret", webhookSecret);

invokeUrl
[
    url    : webhookUrl
    type   : POST
    body   : payload.toString()
    headers: headers
];

// The reply is delivered by the OpenClaw gateway via the Cliq bot API,
// so the handler itself returns an empty response.
response = Map();
return response;

When a form submission arrives, the plugin synthesizes the agent's message body from the submitted values:

Form: approval_request
approver: alice@corp.com
priority: High
reason: prod deploy gate

The raw structured values are ALSO surfaced on the inbound context as FormValues (a string-keyed map) and FormName (the form's display name), so an agent tool or downstream flow can read them as structured data rather than parsing the body text. A form submission is treated as a directed action at the bot — a group form submission is admitted without a separate @mention (the same way a reply to the bot is). DM admission (dmPolicy / allowFrom) and self-message / dedupe guards apply unchanged. A form submission whose every field is empty is dropped (no agent-readable content). No new OAuth scope is required — the Form Handler is a bot handler that posts to the webhook over the same x-cliq-webhook-secret-authenticated transport as Message / Mention / Welcome. There is no separate opt-in config field — if no form is wired up, no form submissions arrive.

5c. Agent-rendered forms (outbound structured input)

In addition to the inbound Form Handler above, the agent can solicit structured input at runtime by rendering a form as a native Cliq prompt card with a button per option — the portable equivalent of a Cliq platform Form, emitted on demand. The agent calls the shared message tool with a form param:

message(action=send, to="cliq:user:u-1", form={
  title: "Which priority?",
  fields: [
    { name: "priority", label: "Priority", type: "select",
      options: [{ label: "High", value: "high" }, { label: "Low", value: "low" }] },
    { name: "reason", type: "text", placeholder: "brief justification" }
  ]
})

Rendering rules:

• Each select field with ≥2 options becomes its own prompt card (a button per option, capped at 5; extras listed in the card body). Tapping a button posts a __cliq_form__ <fieldName>=<value> sentinel payload back to the bot, which the plugin recognizes and surfaces on the inbound context as a structured FormValues entry ({ <fieldName>: <value> }) — so an agent-posted form's answers re-enter as structured params for a tool call, not plain text. The agent envelope body is the clean <fieldName>: <value> rendering (sentinel stripped). A button click is a directed action at the bot, so a group form response is admitted without a separate @mention.
• text / number fields (and optionless select fields) fold into a single modern-inline summary card posted before the prompt cards, listing each as a question with a reply with <name>: <value> hint. These free-text replies are not sentinel-prefixed and re-enter as ordinary message text (the agent reads them as typed answers); only prompt-card button clicks are structured.
• An optional message param prefixes the first card's text as extra context (instructions, context, etc.).
• A degenerate form (no viable fields) returns an error so the agent can correct and retry.

No new OAuth scope — prompt cards reuse the same card-path scopes the existing message(action=send, buttons=…) path uses (ZohoCliq.Webhooks.CREATE for DM cards via client_credentials; ZohoCliq.Channels.UPDATE on v2 / ZohoCliq.Channels.CREATE on v3 for channel cards via the refresh-token grant). On v2 the prompt theme is ignored and the buttons render as a standard v2 bot-message buttons array; on v3 (apiVersion: "v3") a real prompt-theme Message Card is posted. No config field — the form param is always available on a configured account.

Payload format reference

The plugin parses the JSON payload posted by the Deluge handler. The canonical shape is:

{
  "handler": "mention",            // "mention" | "message"
  "message": { "text": "hi", "id": "msg_123", "time": "2026-07-04T10:00:00Z" },
  "user":    { "id": "12345", "name": "Jane Doe", "email_id": "jane@example.com" },
  "chat":    { "id": "cl_abc", "type": "channel", "title": "Engineering" },
  "channel": { "id": "ch_1", "name": "engineering", "unique_name": "engineering" },
  "mentions": [ { "id": "openclaw_agent", "name": "OpenClaw Agent", "type": "bot" } ]
}

Notes (the parser is tolerant):

• message may be a plain string instead of { text, id, time }.
• A wrapped params object ({ params: { message, user, channel } }) is also accepted.
• Group vs DM detection: chat.type === "channel" (or the presence of channel.* fields) marks a group; otherwise the message is treated as a DM.
• The x-cliq-webhook-secret header is checked against the configured webhookSecret. The plugin also accepts x-webhook-secret or Authorization: Bearer <secret> for convenience.
• Form submissions (see §5b): a payload with handler: "form" and/or a non-empty values object (also accepted under form.values / form_data / formvalues, including inside a params wrapper) is recognized as a Cliq Form submission; the submitted field values synthesize the agent body and are surfaced as FormValues / FormName on the inbound context.
• Agent-rendered form button clicks (see §5c): a prompt-card button posts __cliq_form__ <fieldName>=<value> as the message text; the plugin recognizes the sentinel and surfaces the answer as a FormValues entry ({ <fieldName>: <value> }) on the inbound context (structured params for a tool call), with the clean <fieldName>: <value> rendering as the agent body.

Inbound quote / reply context

When a user replies to or quotes a message in Cliq, the Deluge message handler receives the new message — Cliq does not automatically attach the quoted message's text to the bot. The plugin surfaces the referenced message to the agent from whatever the handler forwards:

• message.reply_to (string message id) — the documented Cliq shape. The plugin carries the parent message id into the inbound context.
• parent / quoted / parent_message / quoted_message / reply_to_message (object at the payload root, or under message) — the full parent message { id, text, sender: { id, name } }. When the handler forwards this, the agent sees the quoted text + sender directly.

When only the parent id is present (the default message.reply_to shape) and a user-context refreshToken is configured, the plugin best-effort fetches the parent message text via GET /api/v2/chats/{chatId}/messages and prepends it to the agent envelope as:

↩ Replying to <senderName>:
> <quoted text>

<the user's message>

A failed or empty fetch degrades to "no quote text" and never breaks the turn.

A reply to the bot in a group is also admitted as an implicit mention (the reply_to_bot / quoted_bot gating kinds) — the user does not need to re-@mention the bot when replying to one of its messages.

Forwarding the parent object is optional. Without it the plugin still carries the parent message id; it only cannot show the quoted text unless a refreshToken is configured (so the plugin can fetch it). If your Deluge handler can resolve the parent message (e.g. via the Cliq REST GET /chats/{CHAT_ID}/messages/{MESSAGE_ID} endpoint), add it under parent (or quoted) so the agent sees the quote even in DM-only setups with no refreshToken.

Stop / abort the running turn

A user can interrupt a running agent turn by sending a stop intent — stop, /stop, esc, or a common localized equivalent (halt, arrête, 停止, стоп, …). When the plugin recognizes the intent it marks the turn as an authorized command, and the OpenClaw runtime's fast-abort path cancels the in-flight run for that session (cancelSession + run-target abort), clears any queued follow-ups, stops spawned sub-agents, and replies with the canonical acknowledgement (⚙️ Agent was aborted.) in the same chat — instead of queueing another agent turn behind the one still running. No extra config, scope, or Deluge wiring is required; the trigger set is the shared one every OpenClaw channel uses.

• In a DM, any stop intent aborts the running turn (DMs are always directed at the bot).
• In a channel, the user must @mention the bot (@bot stop) so the abort is admitted under the same mention gate as a normal reply — a bare stop in the channel is treated as room chatter and ignored.

Verification

After the steps above, send a test message:

1. DM the bot in Cliq (if dmPolicy is allowlist, make sure your Zoho user id is in allowFrom).
2. @mention the bot in a channel it was invited to.

Both should trigger a POST /cliq/webhook on your gateway (visible in the gateway logs) and an agent reply in the same chat. If nothing arrives, check:

• The bot is active/published in Cliq.
• The Deluge handler is saved and the webhook URL / secret are correct.
• The gateway host is reachable from the public internet (curl https://<gateway-host>/cliq/webhook from an external host — a 405 Method Not Allowed on GET means the route is live).
• The OAuth client has all the scopes from step 3b (including ZohoCliq.Channels.UPDATE for channel replies), and oauthBase / apiBase match your data center (the plugin defaults to EU — see Data centers). For channel @mention replies and message edits, refreshToken from step 3c must be set — otherwise those paths fail with oauthtoken_scope_invalid.

Smoke testing with curl

You can verify the webhook route and the expected JSON body shape independently of Zoho Cliq. Replace <gateway-host> and <secret> with your values:

curl -i -X POST 'https://<gateway-host>/cliq/webhook' \
  -H 'Content-Type: application/json' \
  -H 'x-cliq-webhook-secret: <secret>' \
  --data '{
    "handler": "message",
    "message": { "text": "hello from curl", "id": "smoke_1" },
    "user":    { "id": "smoke-user", "name": "Smoke Tester" },
    "chat":    { "id": "smoke-chat", "type": "channel", "title": "Smoke" }
  }'

Expected response (the webhook acknowledges receipt synchronously and dispatches asynchronously):

HTTP/2 200
content-type: application/json

{"status":"received"}

• 200 {"status":"received"} — the route is live, the secret matched, and the body parsed as JSON. The agent reply (if any) is delivered asynchronously to the chat id you supplied.
• 401 unauthorized — the x-cliq-webhook-secret header did not match webhookSecret.
• 400 ... is not valid JSON — the body was not JSON (e.g. you used parameters: in Deluge, or Content-Type was application/x-www-form-urlencoded). Re-check the Deluge handler in §5.
• 503 cliq not configured — the channel account is not configured in openclaw.json (see §4).

Data centers

Zoho stores each account in a single regional data center, and the API / OAuth domain differs per region (accounts are DC-exclusive — a .eu account cannot authenticate against .com). The plugin defaults to the EU endpoints; for any other region, set oauthBase and apiBase in the config (§4) to the values below, and use the matching domain for the API Console and token URLs throughout the setup guide.

Which region am I on? Check the domain you log into Zoho at (e.g. cliq.zoho.in → India), or read the api_domain / location value Zoho returns during the OAuth flow.

Auto-detection. You do not have to get the region right on the first try:

• The setup wizard (openclaw configure) prompts for your Zoho data center first and writes oauthBase + apiBase together from the region table above (EU is the default; a re-run reuses your existing region so a non-EU account is never silently reset to EU). The printed API Console URL matches the region you pick.
• After the first successful OAuth token exchange, the plugin reads the api_domain field Zoho returns in the token response and, when it indicates a region that disagrees with the configured apiBase, self-corrects apiBase to the matching cliq.zoho.<tld> (the raw zohoapis host is mapped back to the Cliq host — never used directly) and logs one warning. oauthBase is left unchanged: a wrong oauthBase fails before any api_domain is returned, so it cannot self-heal — set it via the wizard or the config table above.
• openclaw doctor warns when only one of oauthBase / apiBase is set (the other defaults to EU, splitting OAuth + REST across regions) or when the two point at different regions (a likely copy-paste mistake).
• A Zoho auth failure (invalid_client / oauthtoken_scope_invalid / 4xx auth) surfaces a verify your Zoho data center hint pointing back here. This includes v3 endpoints (apiVersion: "v3"), whose {"message":"…"} error envelope is parsed so the auth-failure patterns match the extracted message text (e.g. a v3 401 "…invalid AuthToken." triggers the same hint).

Example — a US-based account (.com). EU accounts can omit both fields:

{
  "channels": {
    "cliq": {
      "accounts": {
        "default": {
          "clientId": "<from the .com API Console>",
          "clientSecret": "<from the .com API Console>",
          "botId": "openclaw_agent",
          "oauthBase": "https://accounts.zoho.com",
          "apiBase": "https://cliq.zoho.com"
        }
      }
    }
  }
}

Contributing

Bug reports, feature requests, and pull requests are welcome — see CONTRIBUTING.md for local development, conventions, and the PR flow, and SECURITY.md for private vulnerability reporting. Release and ClawHub-publish steps live in RELEASING.md; the version history is in CHANGELOG.md.

Development

This plugin is developed iteratively by an autonomous coding agent (OpenCode via GitHub Actions). See AGENTS.md for project context and conventions, and ROADMAP.md for the open worklist / feature-parity target. The coding-agent workflow only runs for issues opened by repo maintainers (owner / member / collaborator) — a public issue will not trigger it.

License

MIT
