#observability #tracing #dynatrace #metrics

Otel Deep Observability Plugin

OpenTelemetry deep observability plugin for OpenClaw — traces, metrics, and logs for your AI agent

Install

openclaw plugins install clawhub:openclaw-deep-observability-plugin

OpenClaw Deep Observability

📖 Full Documentation — Setup guides, configuration reference, and backend examples.

What is OpenClaw Deep Observability Plugin?

OpenClaw Deep Observability Plugin is an enterprise-grade OpenTelemetry instrumentation plugin designed specifically for OpenClaw. It provides comprehensive observability into your AI agents' behavior, performance, and security posture.

Key Capabilities

Deep Tracing: Captures complete request lifecycles with proper parent-child span hierarchies, allowing you to trace every LLM call, tool execution, and agent interaction end-to-end.
Rich Metrics: Exposes detailed metrics covering sessions, messages, queues, tokens, LLM operations, tool executions, webhooks, and security events.
Security Detection: Built-in detection for sensitive file access, prompt injection attempts, and dangerous command executions — all exported as span events for real-time alerting.
Flexible Export: Supports both HTTP/Protobuf and gRPC protocols for maximum compatibility with OTLP backends like Dynatrace, Grafana Cloud, Jaeger, and more.
Input/Output Capture: Configurable capture of LLM and tool inputs/outputs for debugging and auditing purposes.

Use Cases

Performance Monitoring: Identify slow LLM calls, bottlenecks in tool chains, and optimize agent response times.
Cost Tracking: Monitor token usage and associated costs across all agents and models.
Security Auditing: Detect and investigate suspicious agent behaviors in real-time.
Debugging: Trace exact execution flows when troubleshooting agent issues.

Why OpenClaw Deep Observability Plugin?

OpenClaw provides an official diagnostics-otel plugin that offers basic OpenTelemetry observability. However, its capabilities are limited in several critical areas:

Limitations of the Official Plugin

Area	Official Plugin Limitation
Traces	Spans are independent with no parent-child hierarchy, making it impossible to trace request flows
LLM Calls	Aggregated into a single span, no per-call visibility
Tool Calls	Not captured at all
Protocol	HTTP/Protobuf only, no gRPC support
Security	No security event detection
Context	No context propagation between spans

What This Plugin Provides

This plugin was developed to address these gaps and provide comprehensive, production-ready observability for OpenClaw deployments:

✅ Complete Span Hierarchy: Every operation is properly linked, giving you full visibility into request flows
✅ Per-Call Granularity: Each LLM call and tool execution is captured as a distinct span with timing and attributes
✅ Dual Protocol Support: Choose between HTTP/Protobuf or gRPC based on your infrastructure
✅ Built-in Security Detection: Automatic detection of sensitive file access, prompt injection, and dangerous commands
✅ Full Context Propagation: Proper OTel context flow for distributed tracing scenarios

Comparison Summary

Dimension	Official Plugin	This Plugin	Notes
Traces	⭐⭐	⭐⭐⭐⭐⭐	Official: Independent spans, no hierarchy This: Complete parent-child hierarchy, LLM/Tool calls visible, input/output capture
Metrics	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	Official: Basic Gateway metrics complete This: 100% compatible + Agent/Skill/Tool/Security extra metrics
Logs	⭐⭐⭐	⭐⭐⭐	Same as official
Protocol Support	⭐⭐⭐	⭐⭐⭐⭐⭐	Official: http/protobuf only This: http/protobuf + gRPC dual protocol
Security Detection	☆	⭐⭐⭐⭐⭐	Official: No security detection This: Built-in sensitive file access, prompt injection, dangerous command detection exported as span events

For a detailed comparison with the official plugin, see Comparison to Official Plugin.

Installation

⚠️ Minimum Version Requirement: This plugin requires OpenClaw 2026.3.24-beta.2 or later.

There are two ways to install the plugin:

Quick Installation

bash

npx -y openclaw-deep-observability-tools install

Manual Installation

Install the plugin:

bash

openclaw plugins install openclaw-deep-observability-plugin

Update your openclaw.json:

json

{
  "diagnostics": {
     "enabled": true
  },
  "plugins": {
     "allow": [
       "openclaw-deep-observability-plugin"
     ],
    "entries": {
      "openclaw-deep-observability-plugin": {
        "enabled": true,
        "config": {
          "endpoint": "http://localhost:4318",
          "serviceName": "openclaw-gateway",
          "captureContent": true,
          "resourceAttributes": {
               "application.name": "openclaw"
           }
        }
      }
    }
  }
}

Restart openclaw gateway:
bash
```
openclaw gateway restart
```

Trace Example

After installation, this plugin will export openclaw request traces with parent-child hierarchy like this:

single agent trace example:

Trace Example

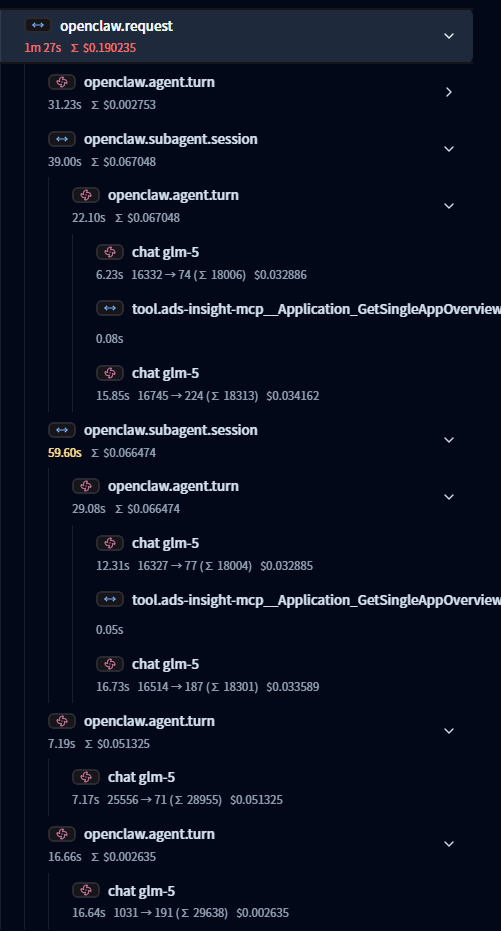

subagent trace example:

Trace Example 2

Configuration Reference

Plugin Options

Option	Type	Description
`endpoint`	string	OTLP endpoint URL (e.g., `http://localhost:4318` for HTTP, `http://localhost:4317` for gRPC)
`protocol`	string	OTLP export protocol: `"http/protobuf"` or `"grpc"`
`serviceName`	string	OpenTelemetry service name
`headers`	object	Custom headers for OTLP export (e.g., `{"Authorization": "Api-Token xxx"}` for Dynatrace)
`traces`	boolean	Enable trace export
`metrics`	boolean	Enable metrics export
`logs`	boolean	Enable log export
`captureContent`	boolean	Capture prompt/completion content in spans
`metricsIntervalMs`	integer	Metrics export interval in milliseconds (minimum 1000)
`resourceAttributes`	object	Additional OTel resource attributes (e.g., `{"application.name": "openclaw"}`)

Please refer to Configuration Reference

Known Limitations

Auto-instrumentation not possible: OpenLLMetry/IITM breaks @mariozechner/pi-ai named exports due to ESM/CJS module isolation. All telemetry is captured via hooks, not direct SDK instrumentation.

Per-LLM-call spans have no input: per LLM call spans has no input.

Acknowledgments

This project is built on top of openclaw-observability-plugin by @henrikrexed. Thanks to the original author for the foundational work on the basic plugin framework.

License

Apache 2.0
